The equipment is certified by CE safety test. Wear-resisting German BASF PU liner for the berrel. Special abrasive materials making a smooth and shiny performance. Double-driving system of grinding, shorten working time and improve efficiency. PLC Contral for operation, intelligent, safe, stable, and simple usage. e p
Item NO.:
OBD-BLG400Order(MOQ):
1Payment:
T/T, L/C, Western Union,Money GrainMarket Price:
$26500Price:
$26500/SetPrice Range:
3 - 10/$24800Product Origin:
ChinaColor:
YellowShipping Port:
XiamenLead Time：
30 daysWeight：
2216Product Detail
The OBD-CJS480 automatic rotary tumbler polisher represents a revolutionary advancement in wet grinding technology and surface finishing systems, specifically engineered for high-precision processing of metal eyeglass frames, hardware components, and delicate metal assemblies. This innovative wet polishing machine integrates intelligent rack-based processing with advanced buffing capabilities to deliver superior surface treatment results previously unattainable through conventional mass finishing methods.
Featuring an eight-rack configuration accommodating up to 480 metal eyeglass frames per processing cycle, this industrial wet grinder solves the long-standing industry challenge of effective wet polishing for metal frames. The integration of PLC-controlled positioning systems, independent rack rotation technology, and precision zirconia grinding media ensures optimal surface flatness, exceptional brightness enhancement, and dramatic improvements in subsequent processing efficiency while reducing operational costs.
Accommodates eight independent stainless steel mounting racks supporting up to 480 metal eyeglass frames simultaneously. Proven stainless steel hanger design prevents frame deformation during wet tumbling operations while eliminating polishing dead zones and ensuring complete surface coverage for optimal finishing uniformity
Each mounting rack features independent counter-rotation opposing the main barrel rotation direction. This innovative dual-axis movement creates optimal friction dynamics between workpieces and grinding media, dramatically enhancing wet polishing efficiency and ensuring uniform surface treatment across all component surfaces
Advanced programmable logic controller manages precision rack positioning, automated door indexing, dual-speed control (roller: 0-50 RPM, fixture: 0-80 RPM), and intelligent process sequencing. Comprehensive parameter control optimizes forward/reverse rotation cycles for maximum finishing effectiveness
High-density bamboo fiber barrel with 20mm liner thickness offers superior material density compared to traditional wood construction. This advanced material reduces tumbling compound consumption, minimizes barrel wear, provides excellent acoustic dampening, and ensures watertight integrity throughout extended wet processing operations
Wet Grinding: 90 minutes
Dry Polishing: 4-6 hours
Total Time: 5.5-7.5 hours
Complete Wet Processing: 2-3 hours
Process Stages: Integrated
Total Time: 2-3 hours
Process Efficiency Improvement: 60-75% Time Reduction | Dramatic Labor Cost Savings
Material: GZ-M Zirconia Oxide
Size Range: 2.0-2.5 mm
Loading Quantity: 250-300 kg per barrel
Service Life: 3 months (250-300 kg capacity)

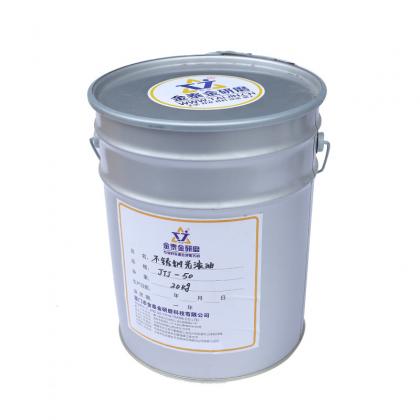

Product Code: OBD-M1 Brightening Agent
Consumption Rate: 0.2 kg per 2-3 hour cycle
Function: Surface brightness enhancement and final polish optimization
High Density: Superior grinding efficiency compared to conventional ceramic media
Heat Resistance: Maintains performance under extended processing conditions
Wear Resistance: Extended service life reduces media replacement costs
This versatile wet grinding and surface finishing machine excels in processing acetate, plastic, and metal products, improving surface flatness, brightness characteristics, and preparing components for subsequent manufacturing operations while achieving significant efficiency gains and cost reductions.
Optical frames, spectacle components, eyewear hardware
Acetate eyewear, plastic frames, composite materials
Hardware accessories, metal fittings, decorative components
Industrial hardware, fasteners, construction supplies
Plastic tool components, equipment parts, molded products
Vehicle components, automotive accessories, trim parts
Motorcycle hardware, vehicle accessories, decorative parts
Medical devices, healthcare components, surgical instruments
Primary Operations: Weld mark removal, wax elimination, grinding, polishing, buffing, deburring, surface smoothing, brightness enhancement, flatness improvement, pre-plating preparation, descaling, oxide removal, edge radiusing, cosmetic finishing
Watch the OBD-CJS480 wet grinding polishing machine demonstrating advanced rack rotation technology, intelligent PLC control, and superior surface finishing capabilities
Mandatory PPE: Safety Mask, Ear Plugs, Protective Gloves, Safety Shoes
Before opening the machine door, verify the surrounding environment is clear. Ensure no personnel or obstacles are positioned in front of the door opening path to prevent safety hazards during operation.
After complete barrel stoppage, inspect sealing strips for integrity, verify no water leakage, and confirm lock buckles are undamaged. Only after successful inspection should the exhaust port be opened. Standard exhaust time: 20-40 minutes (adjust based on ambient temperature; higher temperatures require shorter exhaust periods).
Utilize jog function on door number button to align the corresponding barrel door to horizontal position, facilitating safe and efficient loading/unloading operations.
Verify water level adequately covers grinding material. Add water as needed to maintain proper levels. Complete water change required every 36 hours. Initial rolling oil addition: 150g with fresh water; reduce by 15g for each subsequent addition.
Open barrel door and place 2 hangers for the corresponding door position. Ensure hangers are firmly secured in hanger slots. Close and lock barrel door, then rotate barrel to access remaining 3 door positions for sequential rack installation.
Close protective cover, complete operation record documentation, set running time parameters, and initiate machine operation. Monitor equipment for 20 seconds to verify normal operation before leaving workstation.

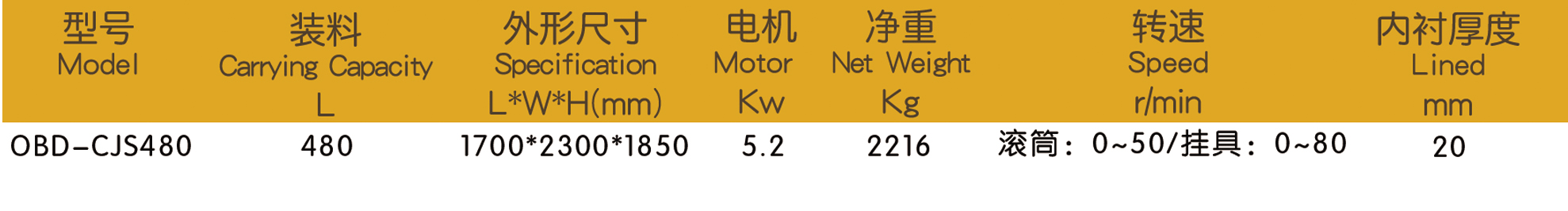

| Model Number |
Carrying Capacity (Liters) |
Overall Dimensions (L × W × H mm) |
Motor Power (kW) |
Net Weight (kg) |
Speed Range (RPM) |
Liner Thickness (mm) |
|---|---|---|---|---|---|---|
| OBD-CJS480 |
480 Liters (16.9 cubic feet) |
1700 × 2300 × 1850 (66.9" × 90.6" × 72.8") |
5.2 kW (7.0 HP) |
2216 kg (4,885 lbs) |
Roller: 0-50 RPM Fixture: 0-80 RPM (Dual independent control) |
20 mm (0.79") |
Configuration Note: Standard specifications shown. Custom wet grinding systems available with modified rack quantities, specialized rack designs, upgraded PLC control packages, enhanced motor configurations, and integrated automation features tailored to specific manufacturing requirements.
Our application engineering team will recommend the optimal wet grinding solution, equipment configuration, and abrasive media selection based on comprehensive laboratory testing of your components. We encourage you to submit sample parts for complimentary application analysis. Our detailed testing report will specify recommended process parameters, zirconia media specifications, compound formulations, and expected surface finishing outcomes precisely tailored to your component materials, geometries, and quality requirements.
Installation and Operator Training: Professional equipment installation, commissioning, and comprehensive operator training conducted by our team of highly skilled and experienced service engineers, ensuring optimal equipment performance and operator proficiency in wet grinding operations.
Spare Parts Service: We maintain a complete inventory of critical spare parts including sealing strips, lock buckles, PLC components, and motor assemblies in our warehouse facility, enabling rapid delivery and minimizing equipment downtime.
Maintenance and Repair Services: Our professionally trained staff of field service engineers provides prompt, reliable preventive maintenance, emergency repair services, and complete equipment overhauls at competitive rates, extending equipment service life.
Professional Technical Consultation: Our surface finishing specialists and process engineers provide expert guidance on wet polishing optimization, media selection, compound usage, and quality improvement. Our decades of industry experience ensures optimal solutions for your unique challenges.
Our comprehensive quality assurance program includes CE certification for all equipment products and ISO 9001 certification for our manufacturing facility. We implement rigorous quality control inspections at every critical production stage, examining barrel integrity, sealing systems, PLC programming, and mechanical assemblies. Each unit undergoes complete operational testing including water leakage tests and full-load running trials before shipment. We provide differentiated warranty coverage for equipment components.
Payment Terms: 30% deposit upon order confirmation, with 70% balance payment required before shipment.
Production Lead Time: 15-30 days for custom-configured equipment; 1-3 days for in-stock standard units.
Packaging Standards: Industrial-grade wooden crate packaging engineered for safe international transportation and container shipping.
Shipping Arrangements: We arrange complete logistics including sea freight, air freight, or express courier services with door-to-door delivery according to your location and timeline requirements.
