How to Choose a Vibratory Finishing Machine for Metal Parts: Bowl, Tub, Capacity, and Process Guide

The right vibratory finishing machine is determined by the parts and the required production result—not by chamber volume alone. This guide explains how to compare bowl and tub machines, estimate practical capacity, match media and process settings, and prepare the information needed for a reliable equipment recommendation.

A machine that looks large enough on a specification sheet can still be unsuitable in production. Long parts may not circulate correctly in a round bowl. Thin aluminum components may dent when the part load is too high. Small media can lodge in holes, while an undersized separation screen can slow every batch. These issues affect finish consistency, labor, cycle time, and total operating cost.

A practical selection process starts with the workpiece: material, dimensions, geometry, starting surface, target finish, batch quantity, and production rate. Only after these factors are clear should you select the machine format, chamber volume, media, compound system, separation method, and drying equipment.

Start with the Part and the Required Finish

Before comparing machine models, document the following six inputs. They determine whether a process is technically viable and whether it can meet production demand.

1. Material: steel, stainless steel, aluminum, brass, zinc alloy, titanium, or another material.
2. Part geometry: maximum length, width, thickness, weight, holes, slots, threads, deep recesses, and features that may interlock.
3. Starting condition: sharp burrs, machining lines, casting scale, oxidation, oil, or an already smooth surface.
4. Target result: deburring, edge radiusing, cleaning, smoothing, polishing, burnishing, or preparation for coating.
5. Production demand: pieces per batch, kilograms per shift, available cycle time, and number of shifts.
6. Quality limits: permitted dimensional change, target roughness or appearance, and sensitivity to scratches, dents, distortion, or part-on-part contact.

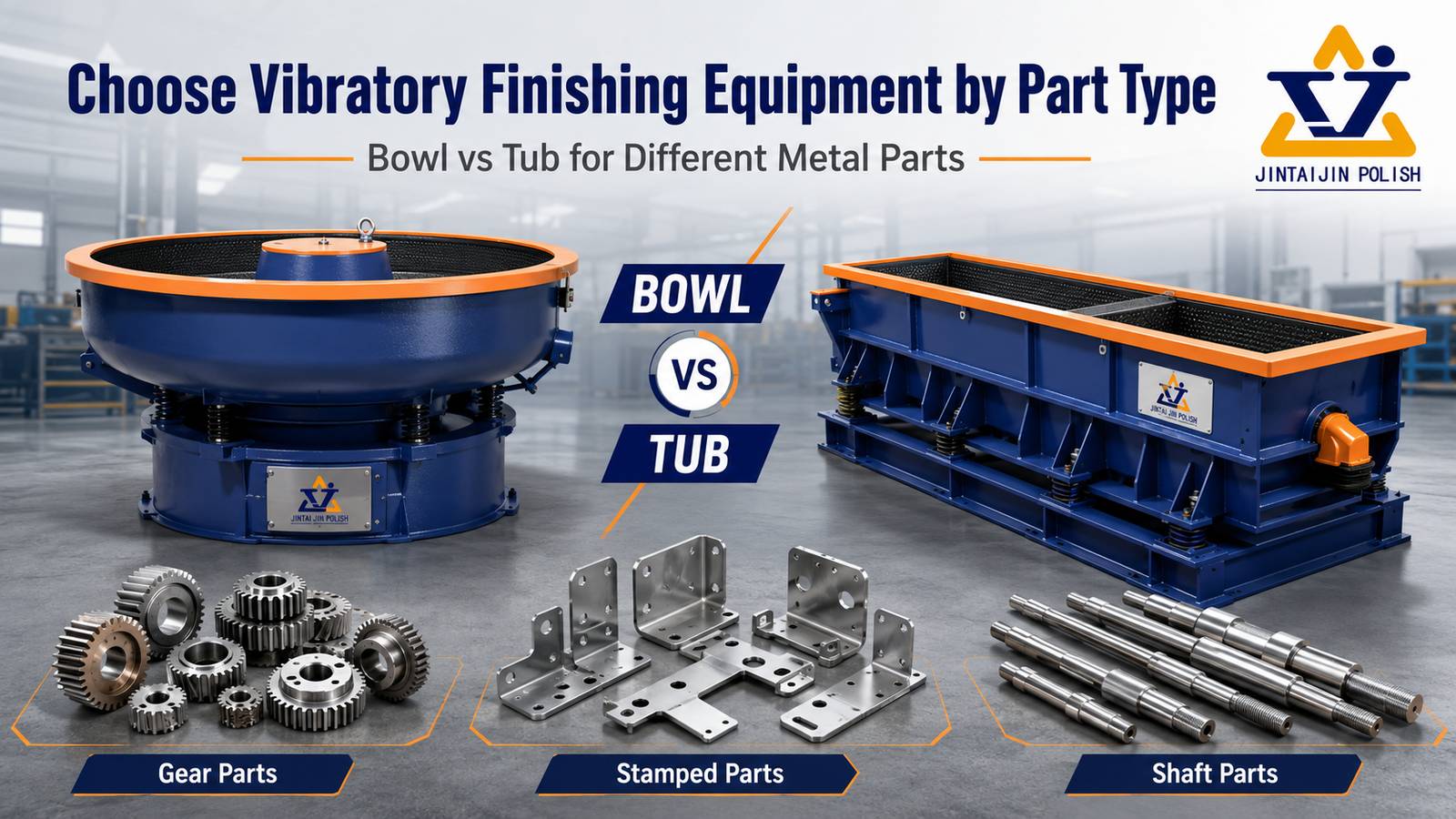

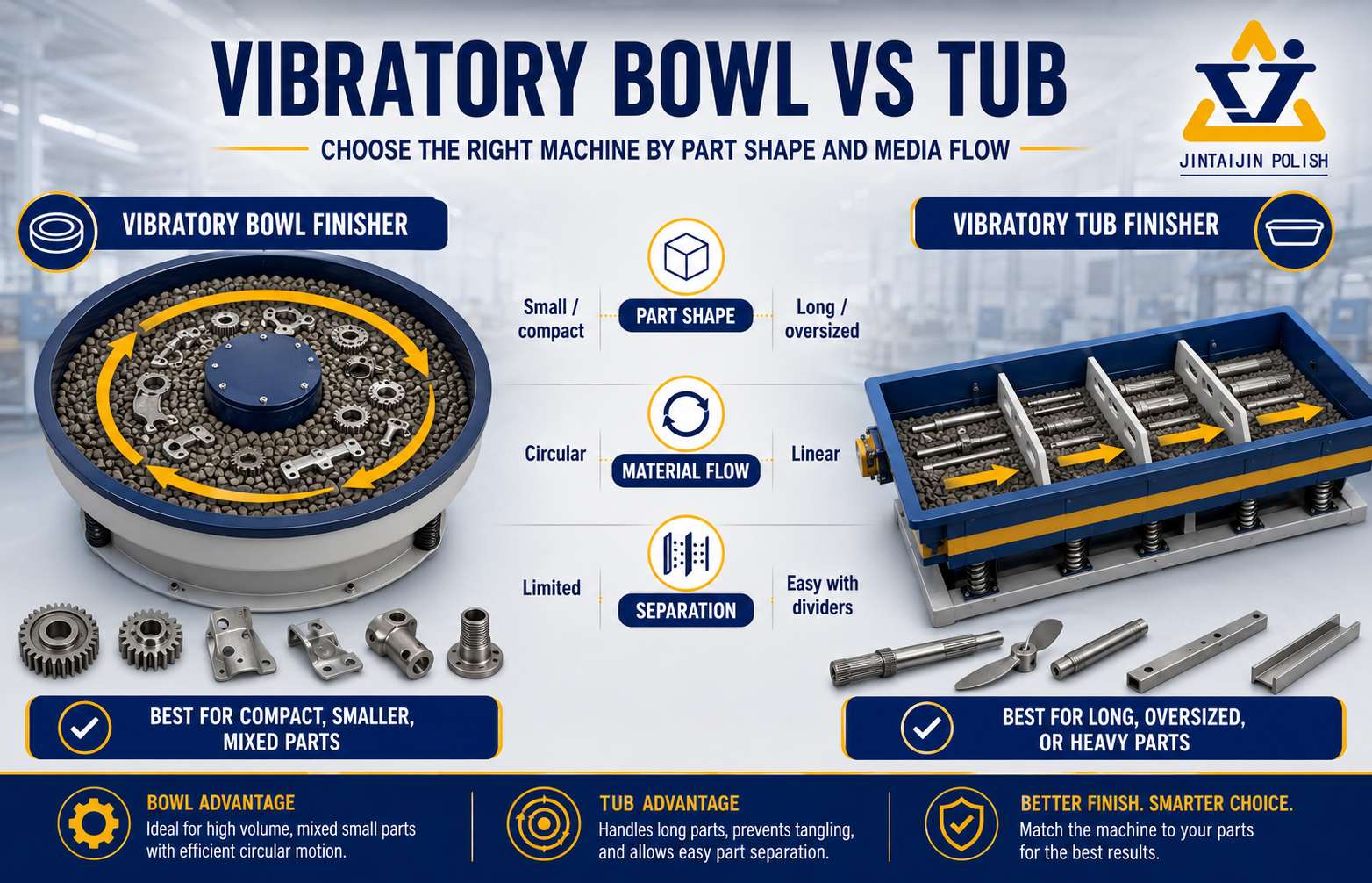

Vibratory Bowl vs Tub: Which Machine Fits Your Parts?

Both machines use vibration to move parts, media, water, and compound through the working chamber. The chamber geometry changes how the load circulates and what workpieces can be processed safely.

Choose a bowl when:

• The parts are short enough to circulate without bridging or entangling.
• You need a flexible machine for several part families and processes.
• Integrated part-media separation can reduce handling time.
• Batch consistency and straightforward loading and unloading are priorities.

Choose a tub when:

• The longest part does not fit safely inside the usable width of a bowl channel.
• Parts are long, heavy, delicate, or expensive enough to require controlled positioning.
• Dividers are needed to prevent component-to-component contact.
• The application involves shafts, blades, housings, castings, or other oversized components.

Explore the available vibratory bowl finishing machines and tub vibrators, but confirm the final model with a part test whenever surface quality or dimensional control is critical.

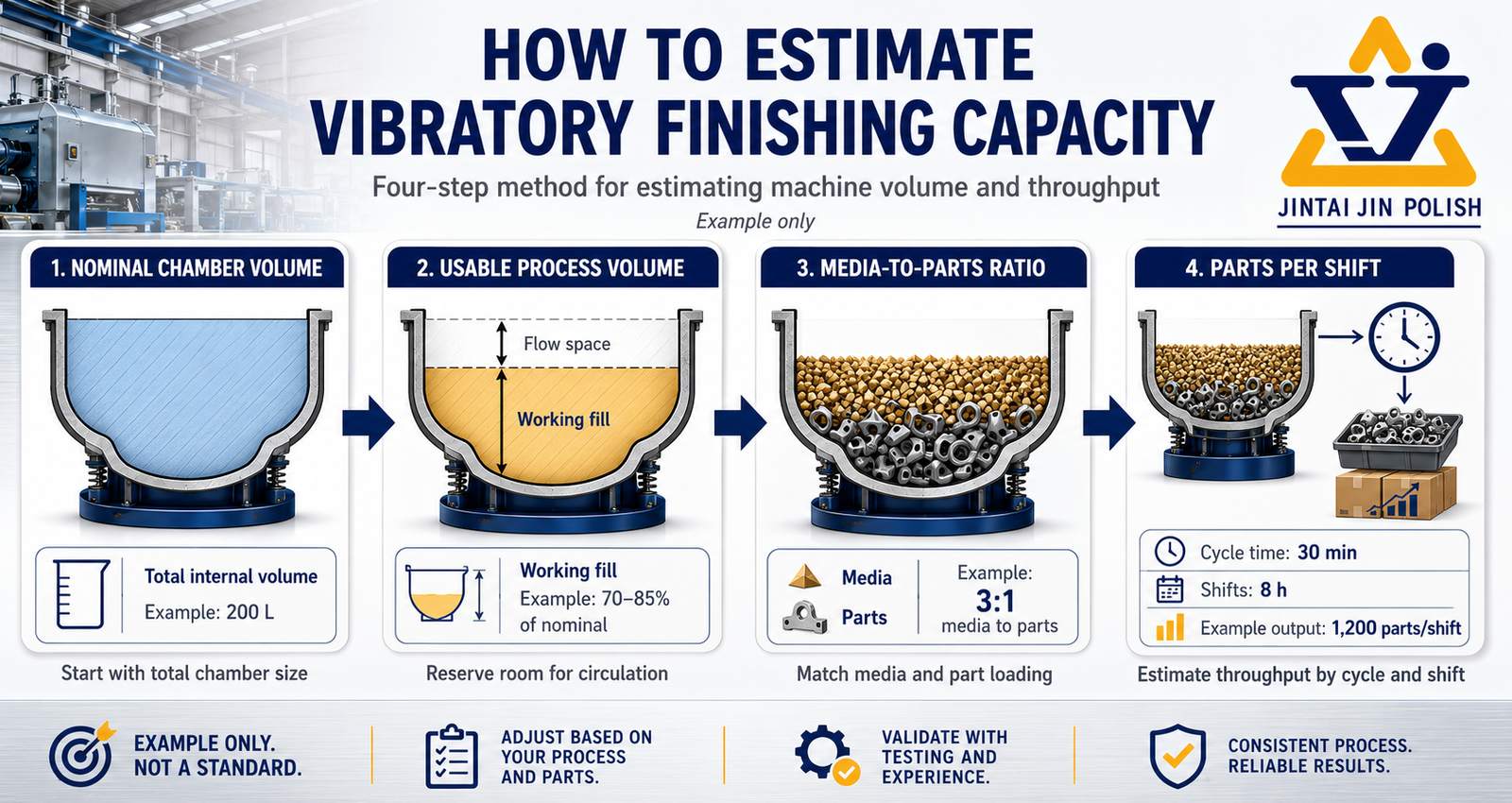

How to Estimate the Right Machine Capacity

Nominal capacity is the geometric volume of the machine chamber, usually stated in liters. It is not the same as the allowable weight of metal parts per batch. The working load also contains media, parts, water, and free space required for circulation.

A more reliable capacity calculation follows four steps:

1. Confirm usable chamber volume. Allow enough free space for the mass to circulate; do not treat every nominal liter as usable production volume.
2. Set a trial media-to-parts ratio. More media generally improves cushioning and separation between parts but reduces the number of parts per batch.
3. Check bulk displacement. Ten hollow aluminum housings and ten solid steel blocks can occupy similar space while having very different weights. Volume and geometry often matter more than weight alone.
4. Validate throughput with a timed trial. Include loading, processing, separation, rinsing, drying, and inspection—not just machine cycle time.

Throughput example

If a validated process handles 120 parts per batch, requires 45 minutes of finishing, and needs another 15 minutes for loading, separation, and handling, the practical output is approximately 120 parts per hour. An eight-hour shift would have a theoretical maximum of 960 parts before allowances for breaks, media maintenance, cleaning, inspection, and changeovers. This calculation is more useful than comparing machine liters alone.

Match the Machine to the Finishing Process

For cutting and deburring, compare suitable ceramic media. For softer metals or a gentler cutting action, consider plastic media. Bright burnishing may use steel finishing media. Media shape and dimensions must be checked against every hole, slot, thread, and recess to reduce lodging.

Machine Features That Affect Production

• Variable frequency or adjustable intensity: useful when one machine handles different materials, part weights, or finishing stages.
• Integrated separation: reduces manual labor when the part and media sizes allow reliable screening.
• Compound dosing and water control: supports repeatable cleaning, cutting action, lubrication, and rinsing.
• PU lining specification: affects wear resistance, part protection, maintenance, and contamination control.
• Sound cover: can improve the working environment where noise control is required.
• Chamber dividers: help isolate long or high-value components in a tub.
• Downstream drying: should be sized for the wet output of the finishing machine to prevent bottlenecks and water spots.

A Practical Equipment Selection Workflow

1. Define the acceptance standard. Use a sample, drawing, roughness target, burr limit, or visual standard.
2. Screen the machine format. Compare the largest part dimensions with the usable chamber geometry and required movement.
3. Select trial media and compound. Check cutting rate, surface effect, material compatibility, and lodging risk.
4. Run a small process test. Record time, loading ratio, water and compound settings, part condition, and dimensional change.
5. Scale the validated batch. Confirm circulation and finish consistency at the intended production load.
6. Calculate the complete line output. Include separation, rinsing, drying, inspection, rework, and changeover time.

See a Vibratory Finishing Process in Action

The video below shows the movement and operation of a vibratory polishing machine. Actual media, loading, cycle time, and machine settings should be selected for the specific workpiece.

Common Selection Mistakes

• Buying by liters alone. Nominal chamber volume does not reveal safe part loading or actual pieces per shift.
• Ignoring the longest dimension. A part may fit inside the machine but still fail to circulate correctly.
• Using part weight as the only capacity measure. Bulky, hollow, thin, and interlocking parts are governed by displacement and contact risk.
• Selecting media without measuring features. The wrong size or shape can lodge in holes, slots, and threads.
• Skipping a production-scale test. A small sample may finish well while a full batch develops contact marks or uneven circulation.
• Forgetting separation and drying. A fast finishing cycle does not improve output if downstream handling becomes the bottleneck.

Information to Send for an Accurate Recommendation

To shorten the selection process, send the following information with your inquiry:

Frequently Asked Questions

Is a larger vibratory finishing machine always more productive?

No. Productivity depends on the safe number of parts per batch, process time, separation, drying, and changeover. An oversized machine running an unstable load can increase media use and operating cost without improving accepted output.

Can long parts be processed in a vibratory bowl?

Only when the part fits the usable channel and circulates without bridging, tangling, or contacting other parts. Long shafts, blades, and profiles are often better evaluated in a tub vibrator.

How much of the chamber should be filled with parts?

There is no universal percentage. The safe part load depends on media-to-parts ratio, part geometry, material sensitivity, desired finish, and machine motion. Use a controlled test to define the production recipe.

Should the machine be selected before the media?

They should be selected as one process system. Media type, size, shape, and density affect cutting action, cushioning, load weight, separation, and the machine power required.

When is a process test necessary?

A test is strongly recommended when parts have critical tolerances, thin walls, complex cavities, high value, strict appearance requirements, or uncertain cycle-time targets. It converts a preliminary equipment estimate into a process-based recommendation.
