1200L 42Cft Big Engine Parts Tub Vibratory Tumbling Machine

  • Item NO.:

    L1300
  • Payment:

    T/T, L/C, Western Union,Money Grain
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    30 days
  • Weight:

    50000000
  • Product Detail

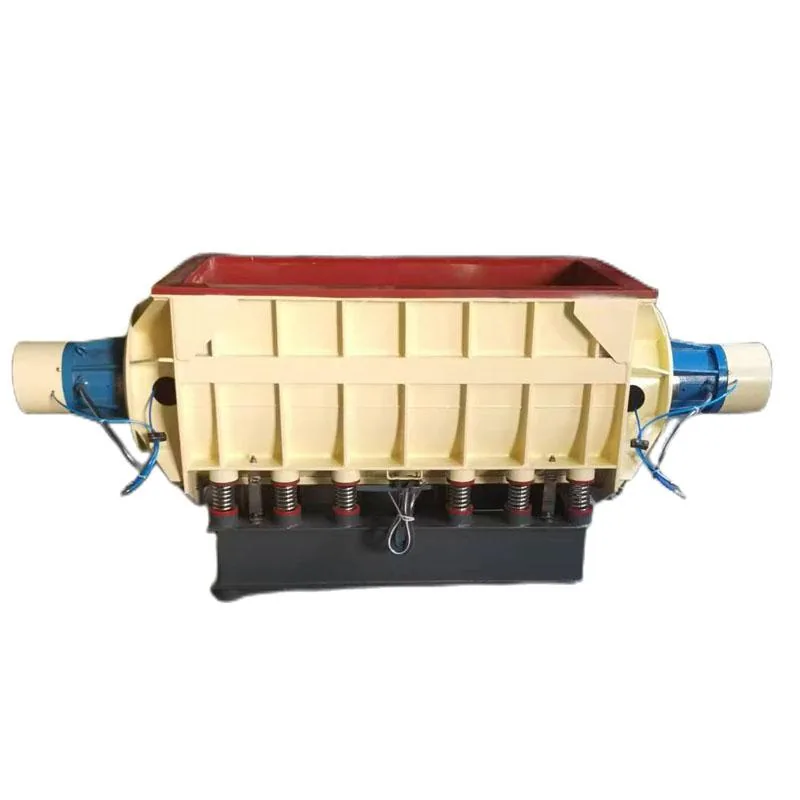

Heavy-Duty Vibratory Tub Finishing System for Large Component Processing

Vibratory tub finishers represent an optimal solution for processing elongated, oversized, and sensitive workpieces that exceed the capacity constraints of conventional circular bowl vibrators. Our comprehensive range of industrial trough vibrators offers multiple size configurations and geometric profiles specifically engineered for heavy-duty mass finishing applications.

These rectangular vibratory finishing systems feature robust, direct-drive unbalanced motor assemblies delivering superior power transmission and operational reliability. For applications requiring simultaneous processing of multiple delicate components, our tub vibrators can be equipped with precision-engineered chamber divider systems to prevent part-on-part contact damage and maintain strict process control.

Primary Applications and Component Types

Trough vibratory finishing equipment is extensively utilized across automotive, aerospace, and heavy machinery manufacturing sectors for processing large-scale precision components requiring controlled surface preparation, deburring, and finishing operations.

Crankshaft Finishing

Automotive and marine engine crankshafts, connecting rods, camshafts requiring precision journal polishing and fillet radiusing

Bearing Cage Processing

Rolling element bearing cages, retainers, separators for surface smoothing and edge conditioning

Turbine Blade Treatment

Aerospace turbine blades, compressor blades, stator vanes requiring critical airfoil surface finishing

Hydraulic Housing Components

Hydraulic valve bodies, manifolds, pump housings for internal passage cleaning and burr removal

Transmission Housing Processing

Gearbox housings, differential cases, transmission components requiring precision cleaning and surface preparation

Long Shaft Components

Drive shafts, axles, spindles, elongated machined components exceeding standard bowl capacity limitations

Advanced Engineering Features and Design Specifications

Heavy-Duty Steel Construction

Premium-grade structural steel fabrication with reinforced welded construction maximizing equipment durability while minimizing maintenance requirements and operational downtime

High-Performance Drive System

Industrial-grade direct-drive vibratory motors with variable frequency drive capability enabling precise control over amplitude and finishing intensity

Large Component Accommodation

Optimized for processing high-value individual components, irregular geometries, and oversized parts requiring gentle handling and controlled media action

Chamber Divider System

Optional precision-manufactured segregation dividers prevent component-to-component contact, eliminating damage risk during batch processing operations

Technical Specifications | Tub Vibrator Model Range

Specification Parameter Model L1300 Model L1500 Model L1800
Bowl Capacity 1200 L / 42.4 cu.ft 1500 L / 53.0 cu.ft 1800 L / 63.6 cu.ft
Overall Dimensions
(Length × Width × Height)
2700 × 1300 × 1400 mm
106.3" × 51.2" × 55.1"
3340 × 1290 × 1440 mm
131.5" × 50.8" × 56.7"
2800 × 1700 × 2000 mm
110.2" × 66.9" × 78.7"
Working Bowl Dimensions
(Internal Chamber)
1200 × 1000 × 1000 mm
47.2" × 39.4" × 39.4"
1500 × 1000 × 1000 mm
59.1" × 39.4" × 39.4"
1800 × 1400 × 1000 mm
70.9" × 55.1" × 39.4"
Motor Power Rating
(Dual Motor Configuration)
5.0 kW × 2 5.5 kW × 2 7.5 kW × 2
Polyurethane Liner Thickness
(Wear-Resistant Coating)
20-35 mm / 0.8"-1.4" 20-35 mm / 0.8"-1.4" 20-35 mm / 0.8"-1.4"
Net Equipment Weight 2200 kg / 4,850 lbs 2600 kg / 5,732 lbs 3000 kg / 6,614 lbs
Control Panel System Standard Standard Standard
Chamber Divider Availability Optional Accessory Optional Accessory Optional Accessory

Engineering Note: All specifications represent standard production configurations. Custom tub vibratory finishers available with modified bowl geometries, upgraded motor packages, specialized PU lining formulations, and integrated automation systems to meet specific application requirements.

Tub Vibrator Technology Advantages

Large Component Capacity

Accommodates elongated and oversized workpieces exceeding circular bowl dimensional constraints

Gentle Part Handling

Controlled media action and optional dividers protect sensitive high-value components from damage

Heavy-Duty Construction

Robust steel fabrication ensures extended service life and minimal maintenance requirements

Versatile Processing

Suitable for deburring, polishing, cleaning, descaling, and surface preparation operations

Process Flexibility

Variable speed control enables optimization for diverse materials and finishing requirements

Cost-Effective Operation

Energy-efficient direct-drive motors and durable polyurethane linings reduce operational expenses

Related Terminology and Search Keywords

Vibratory tub finisher | Trough vibrator | Rectangular vibratory finishing machine | Heavy-duty mass finishing equipment | Large component deburring system | Industrial tub vibrator | Long part finishing equipment | Vibratory deburring tub | Mass polishing trough | Linear vibratory finisher | Elongated part processing equipment | Crankshaft finishing machine | Turbine blade polishing system | Bearing cage deburring equipment | Hydraulic housing finishing | Transmission component processing | Chamber divider system | Variable frequency drive vibrator | Polyurethane lined tub | Direct-drive vibratory system | Heavy-duty deburring equipment | Industrial surface finishing machine | Automotive part finishing system | Aerospace component polishing | High-capacity vibratory equipment | Batch processing vibrator | Soundproof vibratory finisher | Water treatment finishing system | PLC controlled vibrator | Mass finishing automation
