Zinc Alloy Die Casting Finishing: Evaluate Parting-Line Witness Removal

A zinc die casting normally carries a witness where the die halves meet. Before choosing vibratory finishing, identify whether the raised feature is a light witness, removable flash, a gate or overflow scar, or a casting mismatch. These conditions do not require the same finishing route.

Classify the parting-line condition first

Record the location, height, length, accessibility, and nearby cosmetic or dimensional surfaces. A parting-line witness is expected at the die split. Thin flash may need trimming before finishing, while a heavy mismatch or casting defect should be reviewed upstream instead of being hidden by polishing.

If the part will be plated or coated, include the required pre-finish condition in the acceptance criteria. Removing a visible ridge is not, by itself, proof that the surface is ready for the next operation.

Decide whether vibratory finishing fits the defect

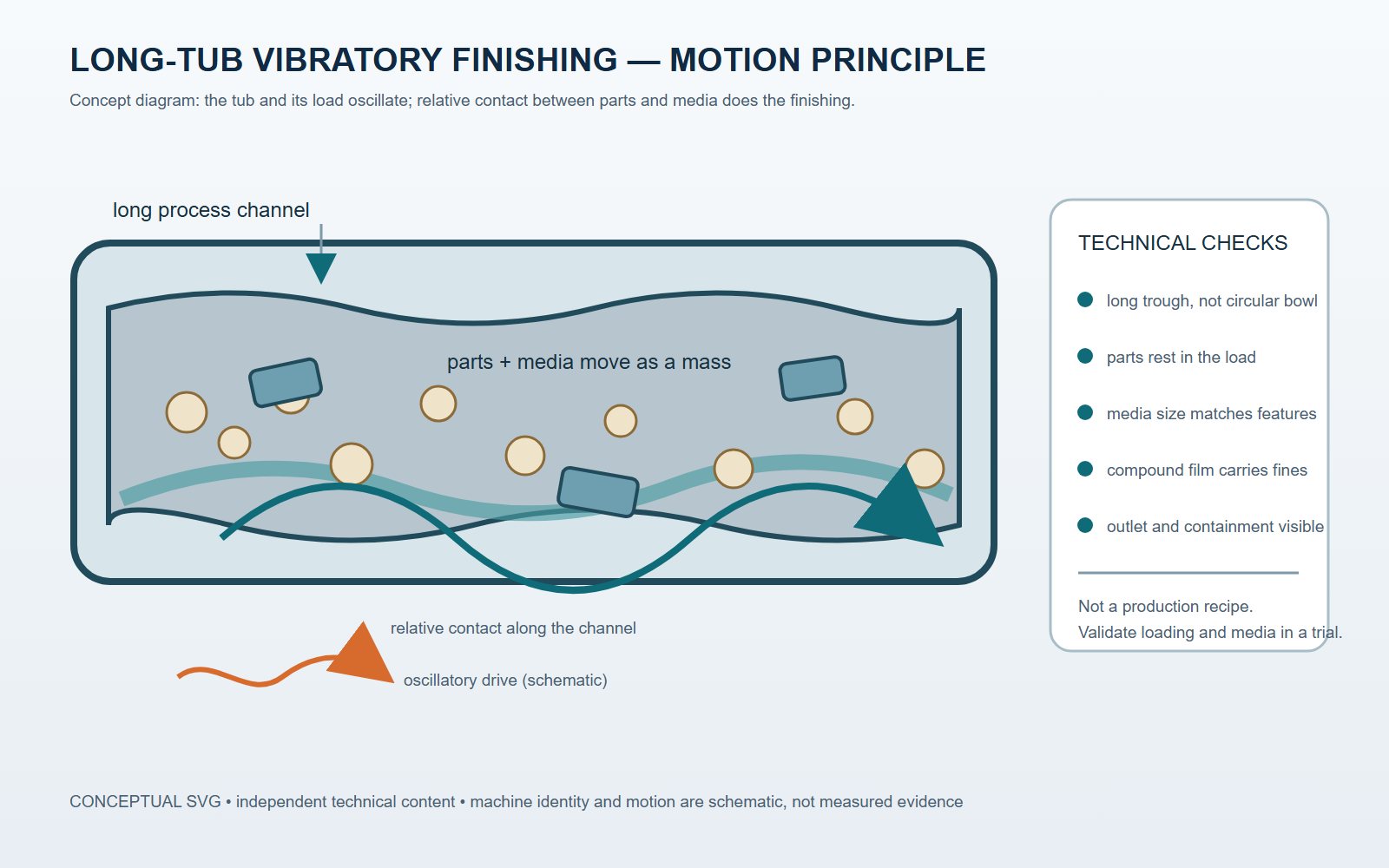

Vibratory finishing can abrade accessible raised features and can be considered for deburring, edge treatment, smoothing, or polishing. Its suitability depends on the zinc alloy, part geometry, media access, required edge condition, cosmetic faces, and the amount of material that may be removed.

Localized heavy marks may require trimming, belt grinding, or another controlled operation before bulk finishing. Deep recesses, narrow internal areas, and protected dimensions may also need a different route or masking and separation strategy.

Build a controlled sample trial

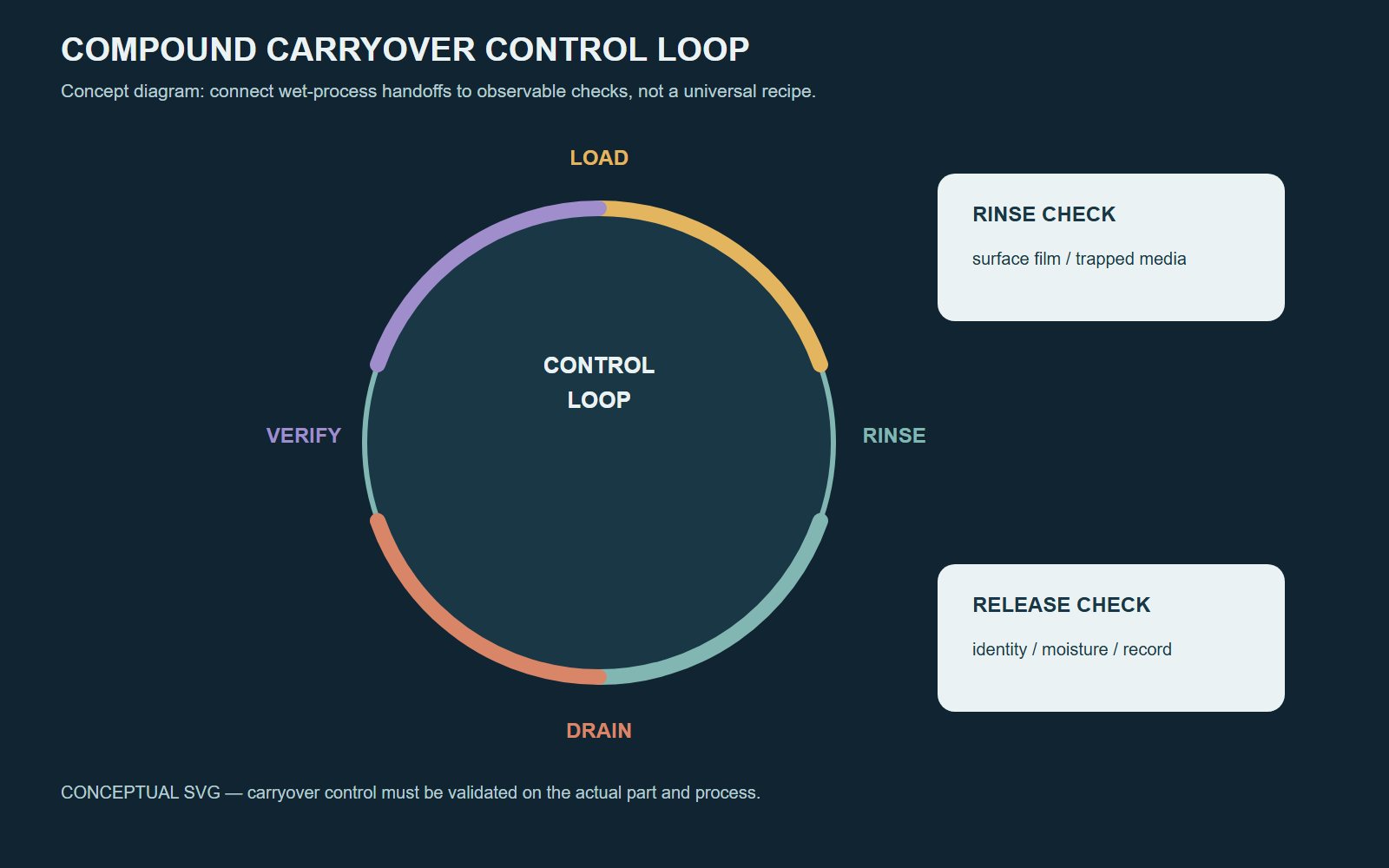

Document the alloy or material designation, part mass and geometry, incoming witness condition, critical dimensions, target appearance, media specification, compound and water condition, load arrangement, and inspection intervals. Select media shape and size so it can reach the target area without lodging or damaging protected features.

Check for part-on-part contact, nesting, staining, trapped media, edge rounding, and changes on cosmetic faces. Do not release a production setting from machine labels or a generic cycle; use representative parts and buyer-approved acceptance criteria.

Inspect before releasing the process

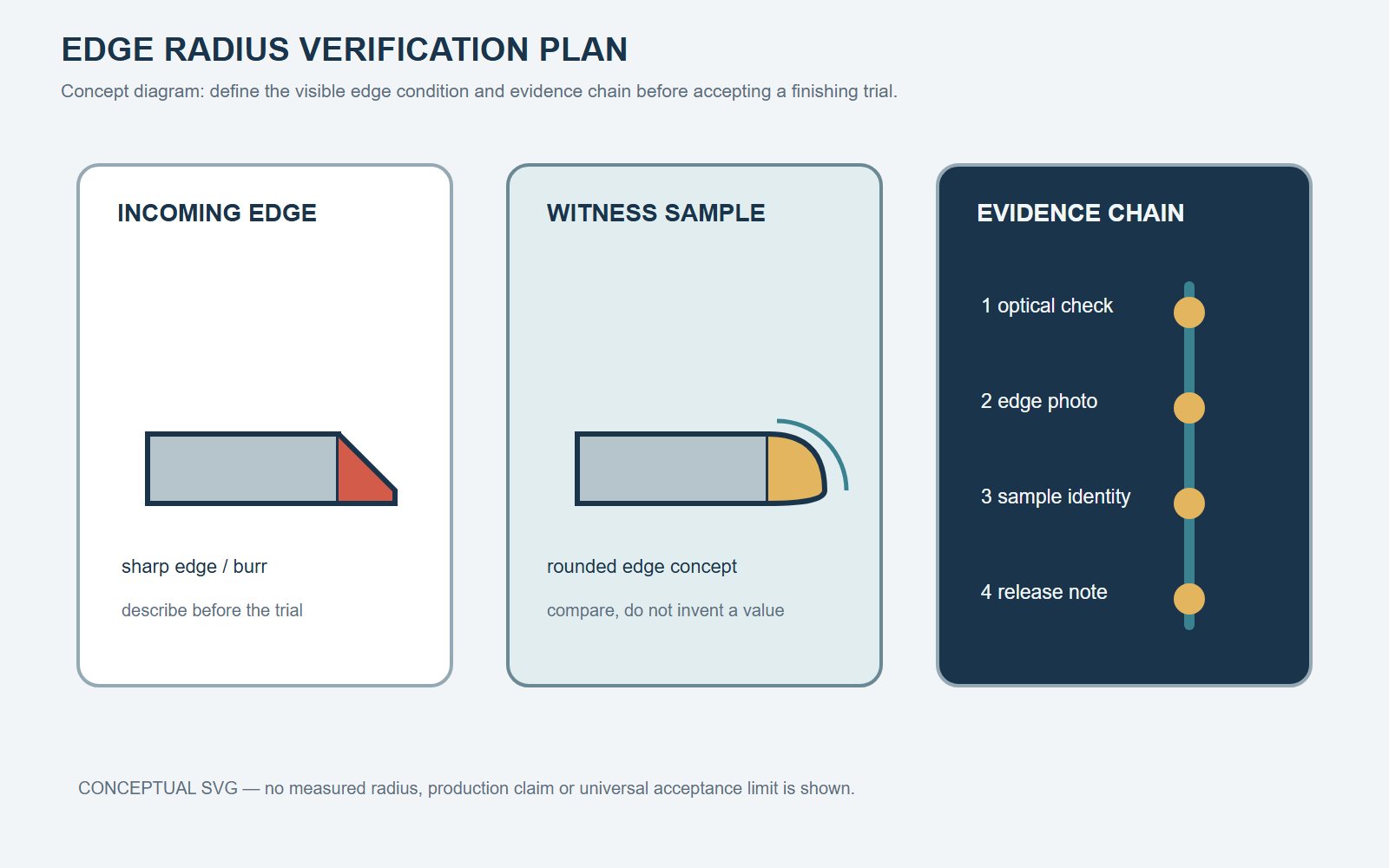

Compare the starting and finished parts under consistent lighting and magnification. Record whether the witness is reduced to the agreed level, then verify critical dimensions, edge condition, coating-ready areas, stains, embedded media, and any new contact marks. Keep an approved witness sample with the process record.

Prepare the information for a process review

Send representative castings, the alloy designation, photos of the parting-line condition, protected dimensions, the next coating or assembly step, and the required appearance. This allows the machine, media, compound, and separation method to be evaluated as a testable process.
