Item NO.:
OBD-LX90BOrder(MOQ):
1Payment:
T/T, L/C, Western Union,Money GrainProduct Origin:
ChinaShipping Port:
XiamenLead Time：
30 daysWeight：
1000000Product Detail

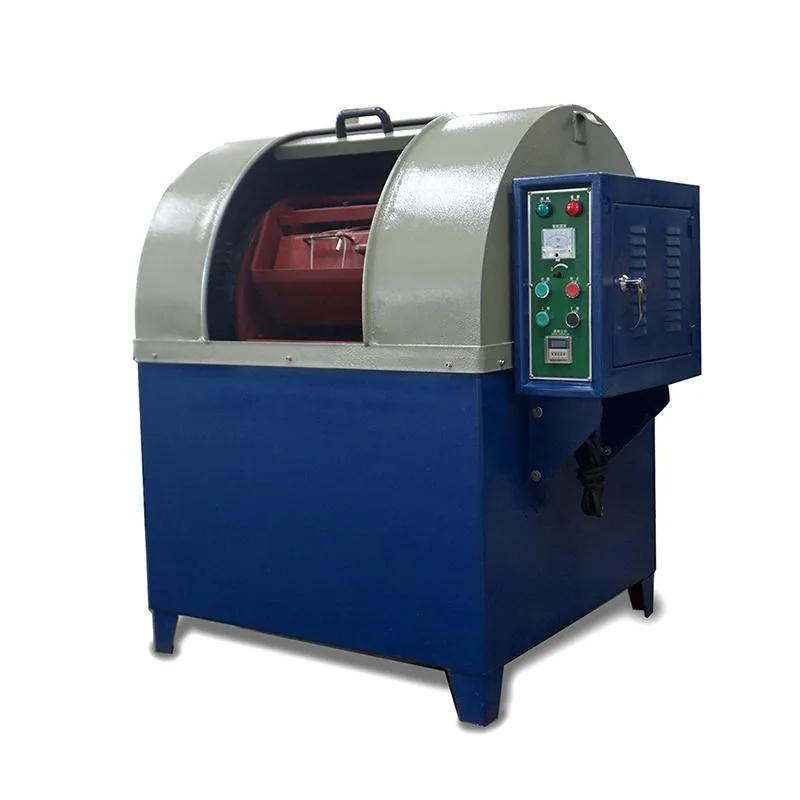

Jintaijin LX series centrifugal barrel finishing machines are the result of decades of expertise in planetary centrifugal mass finishing technology, engineered for precision, speed, and reliability in industrial surface treatment applications. These advanced centrifugal rotary tumblers integrate rugged mechanical design, user-friendly operation, full-range variable speed control, vibration-dampened stable running, ultra-low noise performance, and industry-leading processing efficiency, making them the preferred choice for precision manufacturers across the globe.
Our centrifugal deburring and polishing equipment delivers exceptional finishing results across multiple industrial sectors, specializing in high-precision surface treatment for miniature and complex-shaped components, including optical accessories, eyeglass frame parts, textile machinery components, electronic precision parts, watch movement elements, medical device accessories, jewelry pieces, and micro hardware components.
| Model | Capacity (L) | Dimensions (L×W×H mm) | Motor Power (Kw) | Speed Range (r/min) | Load Capacity (Kg) |
|---|---|---|---|---|---|
| LX60B | 60 | 1150×1200×1400 | 3.0+0.75 | 0~170 | 15×4 |
Email : info@surface-polish.com
Values as published on this product page. Speed is the drum speed range.
| Model | Nominal capacity (L) | Dimensions L×W×H (mm) | Motor (kW) | Speed (rpm) | Load capacity (kg) |
|---|---|---|---|---|---|
| LX60B | 60 | 1150×1200×1400 | 3.0 + 0.75 | 0–170 | 15 × 4 |
Source: specifications published on this product page. The four drums are loaded independently, which is why the load capacity is given per drum.
It finishes parts by rotating multiple barrels around a central axis, which drives the media and parts into each other at high energy. That produces a much shorter cycle than a standard vibratory process, and it suits deburring, smoothing and edge radiusing.
It separates parts from media automatically at the end of the cycle, which reduces manual handling and the risk of damage during unloading. It also makes the process more consistent, because separation is part of the cycle rather than a separate operation.
Small to medium parts in batches, especially where cycle time matters or where parts cannot be handled individually. Thin and delicate parts need more care because the process is more energetic than vibratory finishing.
Each barrel has to be loaded so the charge can move and work against itself properly. An incorrect load in one barrel changes the action in that barrel, which shows up as variation between barrels rather than across the whole batch.
The finish is controlled mainly by cycle time, media grade and the load, because material is removed quickly. Most processes are built as a high-energy cutting stage followed by a gentler stage that produces the final surface.
Answers are directions to test on a sample part, not validated results for a specific component.
